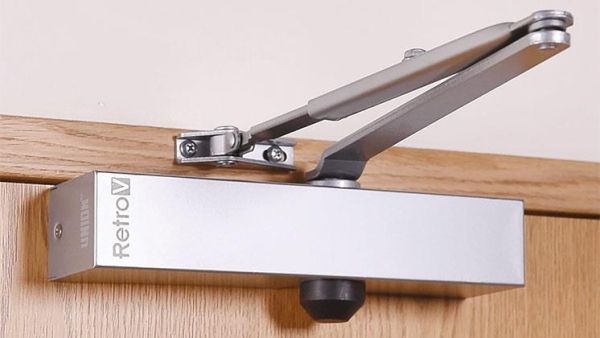

The high performance RetroV door closer from UNION.

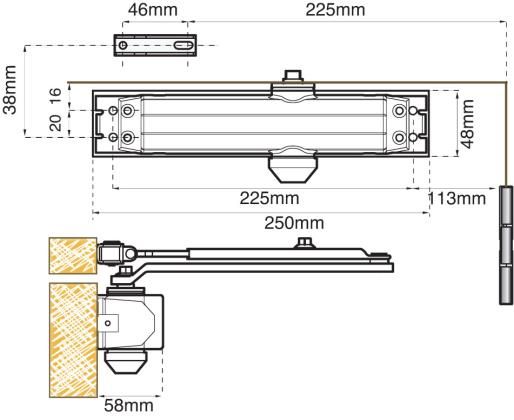

Identical fixing dimensions and footprint to popular UK door closer designs including Briton 2003, 2004 and 2003V.
Sympathetically designed to blend with other traditional door closers that have been used or are currently fixed to other doors nearby.
Suitable for both fire resistant timber and metal doors as well as other internal doors.

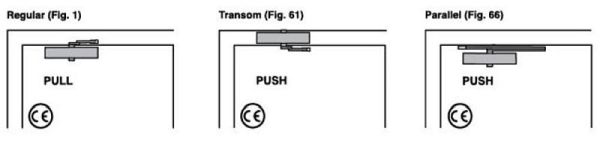

Sizes EN 3-4 wind through adjustable rack & pinion door closer - adjustable closing forces to suit application.Br>Fully tested as both size EN3 and EN4 in all 3 fixing positions.
Ideal for retro fit but also highly suited to 1st fit applications.
Specification:
Aluminium body, steel armset
Independent door speed and latch controls
Non-handed with adjustable power for maximum flexibility
Concealed fixings and adjustment controls
Square steel cover (designed to match existing units)
Fully adjustable armset

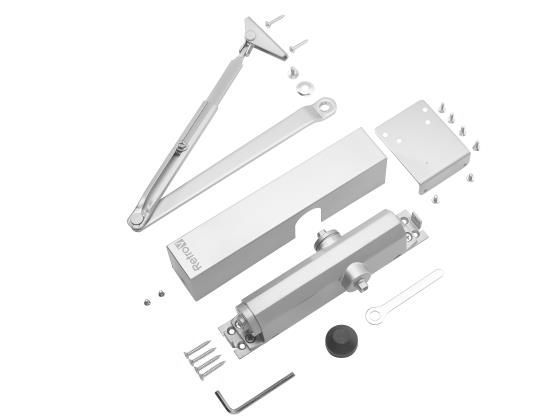

Supplied complete with screws and parallel arm bracket
Easy to use template and pictorial fitting instructions
Max door width is 1100mm (all 3 install positions)
Max door weight is 80kg (all 3 install positions)
Max opening angle 130 degrees
Finish: SE Silver
Standards:
Certificate Number: 0843-CPR-0359 (CE mark not valid if door width/mass exceeds values shown)
3rd party tested to BS EN 1154
RetroV grades 3|8|3/4|1*|1|3 *Included in fire tests to BS EN 1634 with assessment for use on timber fire doors with intumescent protection up to FD120 and metal doors up to FD240
