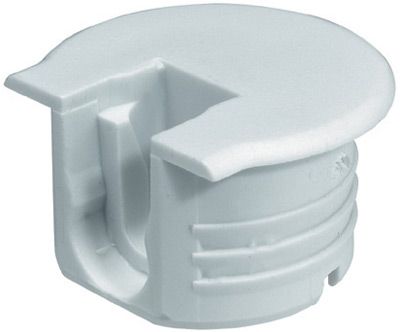

Rafix TAB housing
Plastic housing
For wood thicknesses from 16 mm

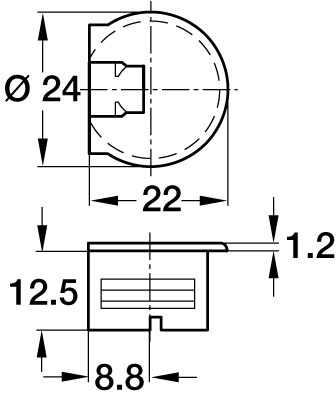

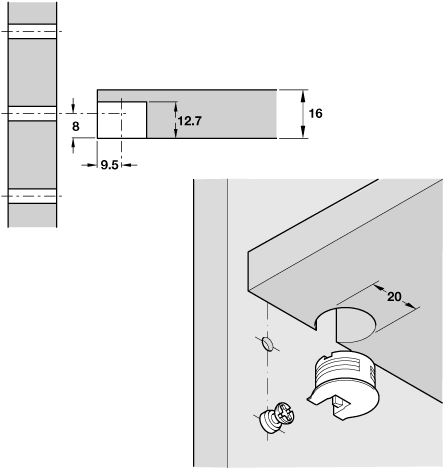

Dimensions vary according to wood thickness (please see illustration):
- For wood thickness from 16 mm: Dimension A = 8.0 mm, Drilling depth X = 12.7^{+0.3 mm}
Rafix TAB is an extension of the Rafix range for helf connections
The housing is pressed into the shelf and pushed onto a Rafix Diam: 7 mm connecting bolt, available seperately
The tapered surafces of the Rafix TAB enure exceptionally tight connection
Rafix TAB features a catch which prevents the shelf from moving upwards away from the Rafix connecting bolt
For wood thickness from: 16 mm, white finish
