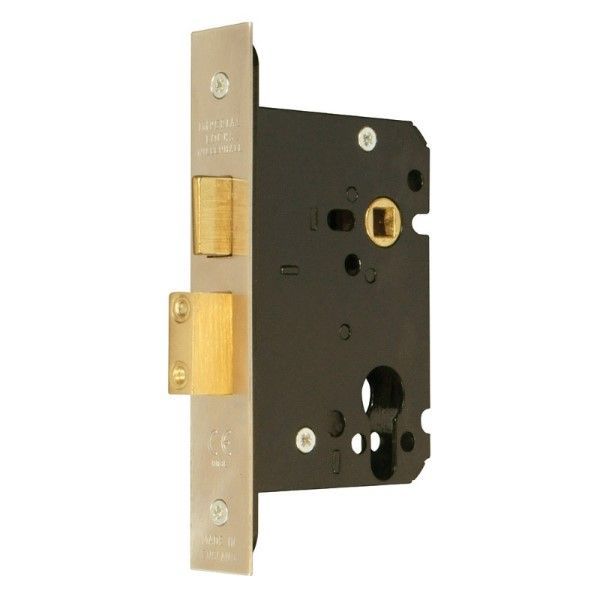

Euro profile cylinder mortice sashlock for use on external wooden hinged doors providing a high level of security. CE Marked door lock Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209. Latchbolt operated by lever handle from either side. Deadbolt operated by key from either side using a double cylinder or by key outside and thumb turn inside using a single cylinder with turn. Supplied with striker plate and fixing screws. Stainless steel (SS) finish.

Case pierced to accept 20mm and 38mm centre bolt through fixing escutcheons. Pierced to accept 38mm centre horizontally and diagonally opposed bolt through fixing furniture

Latchbolt brass, reversible. Projection 12mm

Deadbolt brass, with two hardened steel rollers. Throw 14mm

Follower brass, to suit 8mm square spindle. One-way action. Sprung to suit unsprung lever handle furniture.

Cylinder not supplied.

Lock Case 63mm
Backset 45mm
Centres 48mm
