Concealed shelf supports, press-fit into masonry walls
For concealed mounting of shelves
For installation into masonary walls
Press-fit mounted
12 mm size for 19 mm shelf thickness
14 mm size for 22 mm shelf thickness

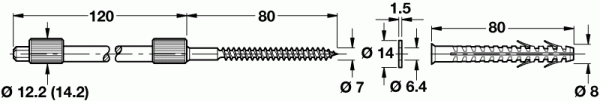

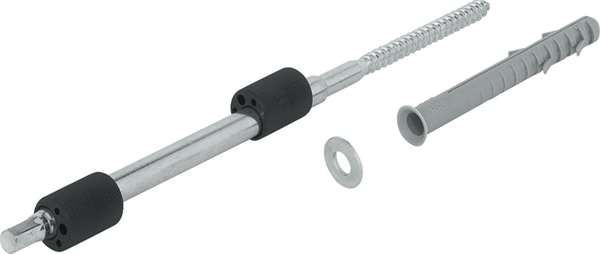

Fitting comprises:
- 1 galvanised steel supporting pin with threaded screw
- 2 pre-mounted plastic sleeves
- 1 galvanised steel washer
- 1 grey nylon Fischer wall plug, S 8H 80 R

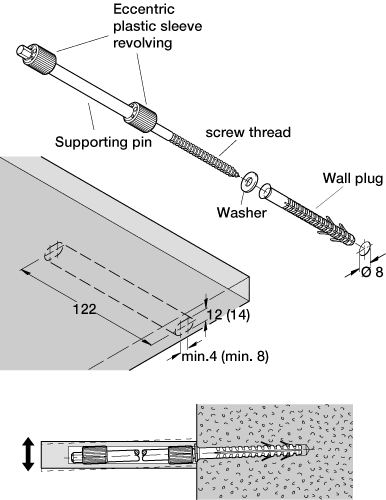

Level the shelf by laying on the shelf supports and adjusting the eccentric screws before finally fixing the shelf in position
Adjustable in height and inclination:
- 12 mm size: +/- 1 mm
- 14 mm size: +/- 2 mm
Support for 22mm shelf thickness
