Concealed shelf supports, press-fit into masonry walls
For concealed mounting of shelves
For installation into masonary walls
Press fit mounted
12 mm size for 22 mm shelf thickness
14 mm size for 24 mm shelf thickness

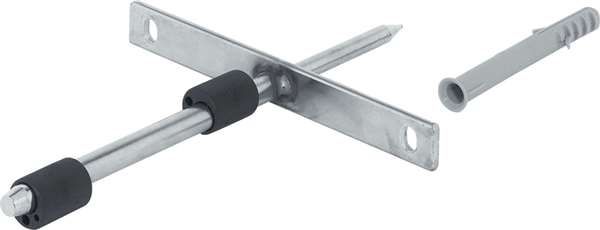

Fitting comprise:
- 1 galvanised steel supporting pin with mounting plate
- 2 pre-mounted plastic sleeves
- 1 grey nylon Fischer wall plug, S 8H 80 R

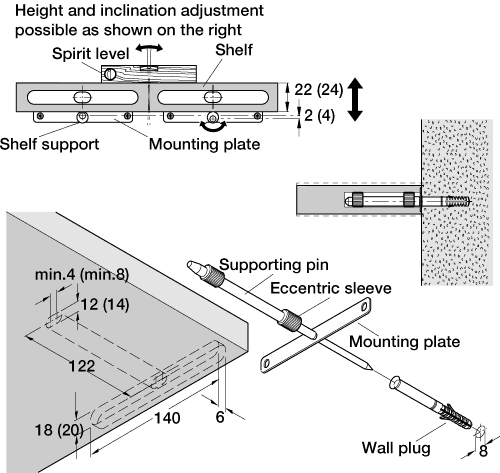

Level the shelf by laying on the shelf supports and adjusting the eccentric screw before finally fixing the shelf in position
Adjustable in height and inclination:
- 12 mm size: +/- 1 mm
- 14 mm size: +/- 2 mm
Support for 24mm shelf thickness
Product Code | HAF283.32.060 |
MPN Code | 283.32.060 |
Stock Level | 5 |
