Concealed shelf support with screw mounting plate
For concealed mounting of shelves
For installation into woodwork or masonry walls
With screw mounting plate
For 24 mm shelf thickness
Fitting comprises:
- 1 galvanised steel supporting pin with mounting plate
- 1 pre-mounted plastic sleeve
- 2 adjusting screws for inclination adjustment

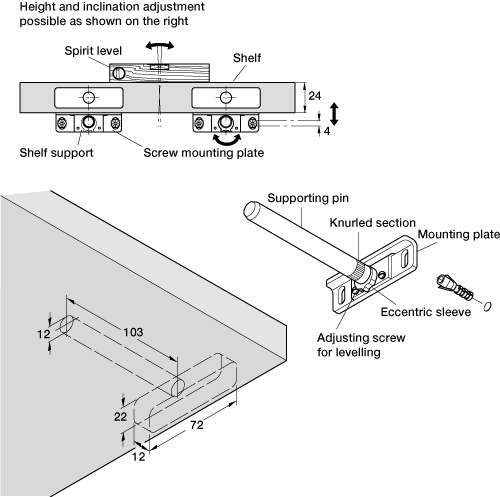

Supporting pin with knurled section is installed in a Diam: 12 mm hole in the shelf, the pin may be exposed or concealed depending on the thickness of the shelf
Height adjustable via slots
Inclination adjustment using adjusting screws which press on the rear plate when turned in
Lateral adjustment by lifting the supporting pin, can be adjusted to the right or left
Support for 24mm shelf thickness
