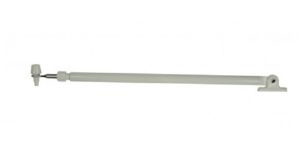

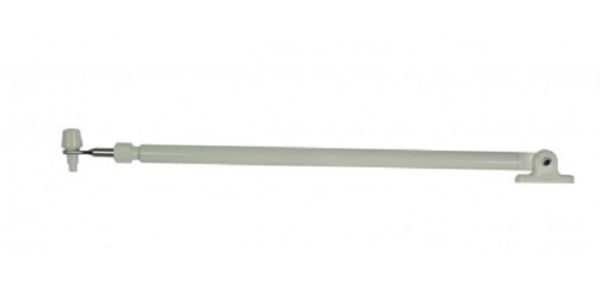

The 1125 standard telescopic friction stays are for use in conjunction with the inward or outward opening window plates (R1178 & R1179). They are specifically designed to hold a window open. Suitable for use on Aluminium, Timber and PVCu inward and outward opening windows and doors.

Recommended max. opening angle is 60 degrees. Should this angle be required to be limited further then the door / window should be opened to the required angle, the stay fully extended and the fixing holes marked.

Construction:
Body - Aluminium with aluminium rod
Ancillaries - polyamide

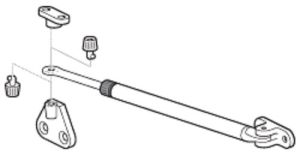

Care should be taken to ensure that the bayonet catch is always to the hinge side of the window. Installation of the stay can be either at the top or bottom of the window. After screwing the stay in position and securing the bayonet catch, the required friction can be obtained by turning the adjusting screw.
Finish: White.
FIXING PLATE SOLD SEPERATELY.

200mm - 290mm telescopic friction stay
