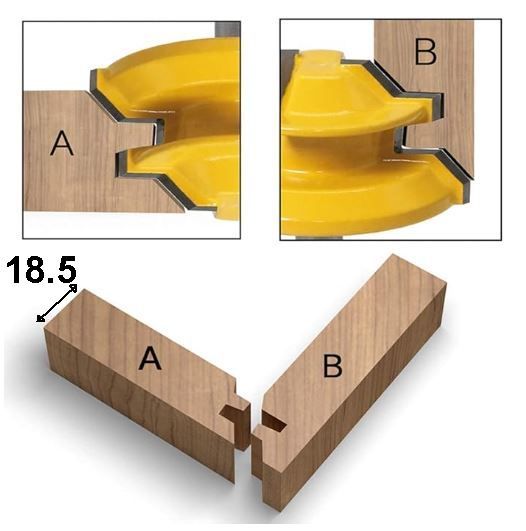

With this router table bit machining of this joint is carried out by routing one piece with the inside face on the table
The matching corner inside face is machined upright against the fence
Make sure that the cutter is centred on the workpiece.
The cutter can also be used for a glue joint for joining lengths together
Ideal for cabinets, made up shelves and drawer construction
Router table use only.

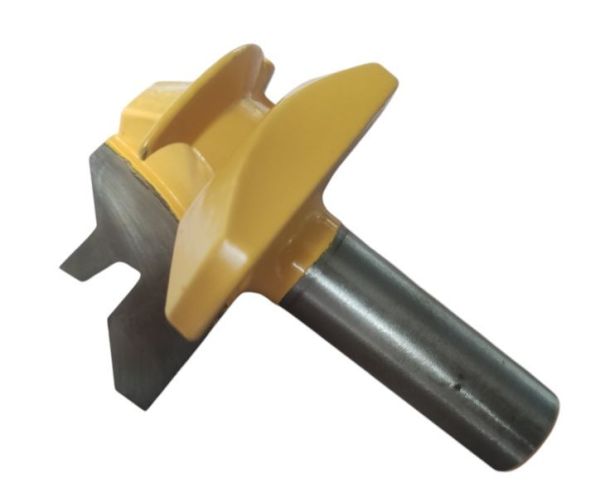

D=50.8mm H=23.3mm L=63.4mm Shank Diameter=1/2 inch.
Timber thickness min.=12 mm
Timber thickness max.=19 mm on 1 side
