Self-guiding cutters for rounding over edges do not require a side fence.
- They are supplied with two bearings.
- Use the larger bearing for a round-over.
- If the cutter is lowered, a top quirk can be produced.
- Bullnose mouldings can also be produced by taking a second pass from the opposite side of the workpiece.

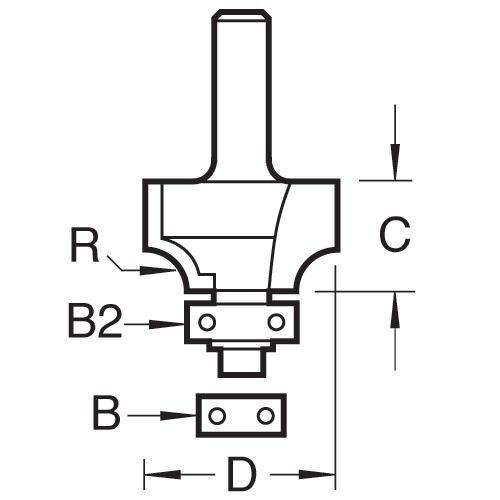

- D 7/8 inch
- D 22.2 mm
- C 1/2 inch
- C 12.7 mm
- B 9.5 mm
- B2 12.7 mm
- R 3/16 inch
- R 4.8 mm
- Overall length 64.5 mm
- Shank Diameter 1/4 inch
