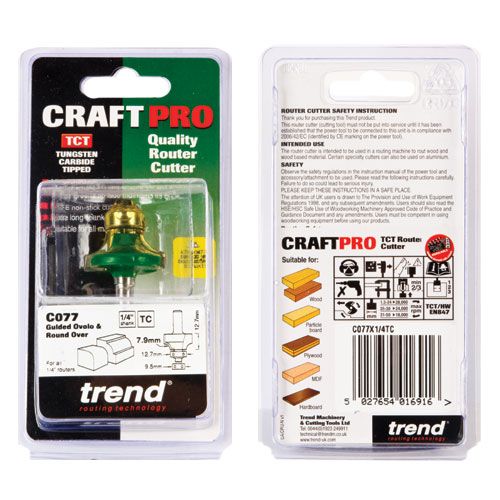

Self-guiding cutters for rounding over edges do not require a side fence.
- They are supplied with two bearings.
- Use the larger bearing for a round-over.
- If the cutter is lowered, a top quirk can be produced.
- Bullnose mouldings can also be produced by taking a second pass from the opposite side of the workpiece.

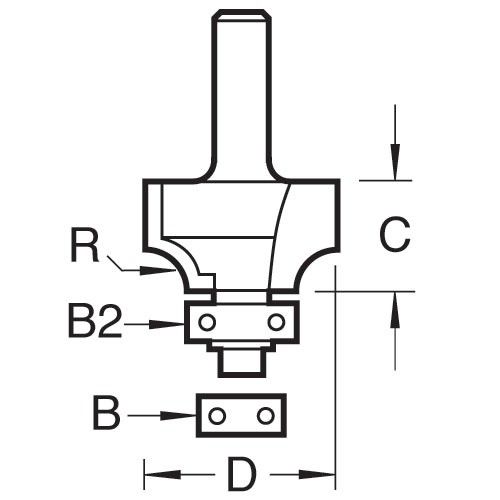

- D 28.5 mm
- C 1/2 inch
- C 12.7 mm
- B 9.5 mm
- B2 12.7 mm
- R 5/16 inch
- R 7.9 mm
- Overall length 64 mm
- Shank Diameter 1/4 inch
