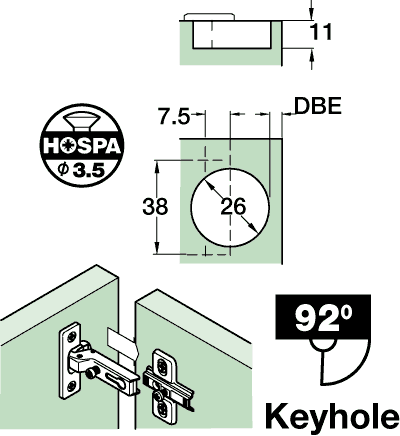

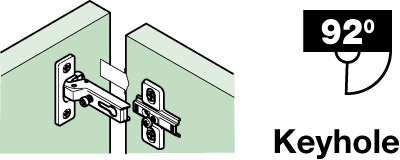

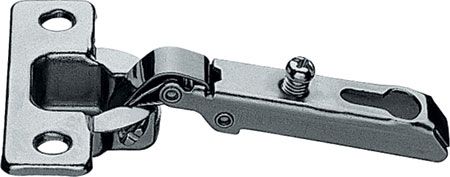

Essentials standard 92deg hinge, Diam: 26 mm cup, screw fixing, keyhole arms
Opening angle 92deg
0 mm, 9 mm or 15 mm crank
Sprung
Diam: 26 mm cup
Screw fixing cup
Keyhole fixing arm
Nickel-plated pressed steel cup and arm

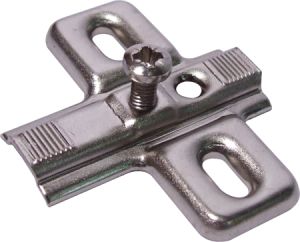

Mounting plates are not included
For illustrations, dimensions and instructions on how to choose the relevant mounting plates, please see PDF Page
Crank: 0 mm
| Product Code | HAF317.01.505 |
| MPN Code | 317.01.505 |
| Stock Level | 10 |
