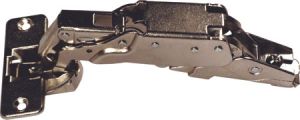

Grass standard 170deg hinge, Diam: 35 mm cup, screw fixing, click on arms, sprung
Opening angle 170deg
0 mm or 8 mm crank
Sprung
Diam: 35 mm cup

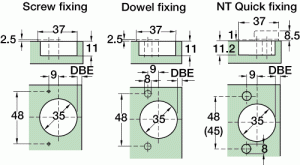

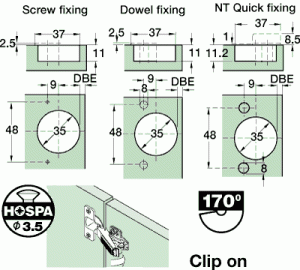

Screw fixing cup
Click on arms
With finger protection
Heavy duty, for doors up to 26 mm thick
For doors more than 23.5 mm please try test installation first
Cup: Nickel-plated zinc alloy
- Arm: Nickel-plated zinc alloy
Mounting plates are not included,please see Dont Forget to Order
Soft close compatible
For illustrations, dimensions and instructions on how to choose the relevant mounting plates, please see PDF Page
Crank: 0 mm
Order fixing plate seperately
