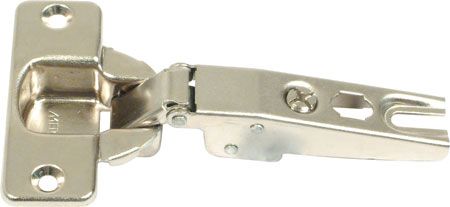

Grass standard 95deg hinge, Diam: 35 mm cup, screw fixing, slide on arms, sprung
Opening angle 95deg
0 mm crank
Sprung
Diam: 35 mm cup
Screw fixing cup
Cup: Nickel-plated pressed steel
- Arm: Nickel-plated pressed steel
Mounting plates are notincludedplease order seperately
Hinge arm cover plates are available seperately

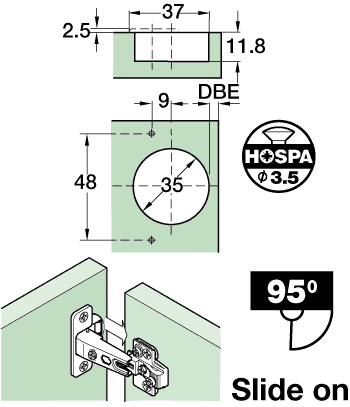

For illustrations, dimensions and instruction on how to choose the relevant mounting plates, please see PDF Page
Crank: 0 mm
