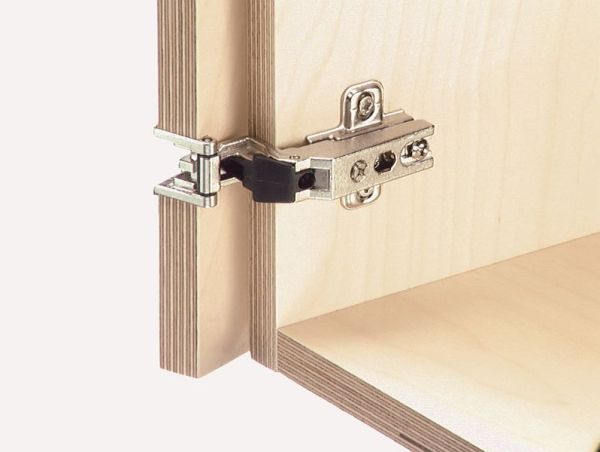

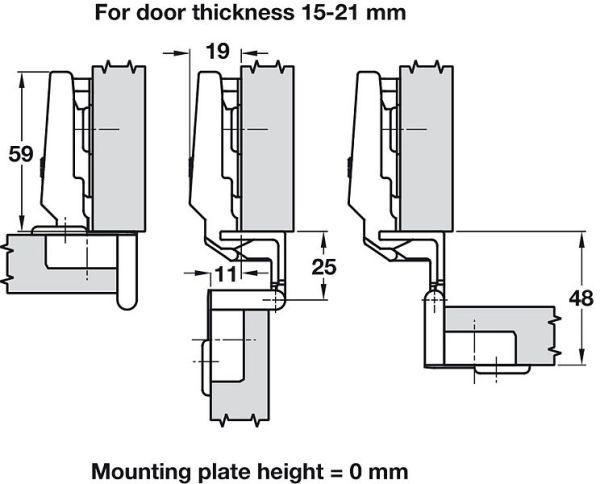

NEXIS 270deg hinge with exposed axle, Diam: 30 mm cup, screw fixing, slide on arms. 0 crank, screw fixing slide on system for door thickness 14 - 21 mm
Opening angle 270deg
0 mm crank, with catch

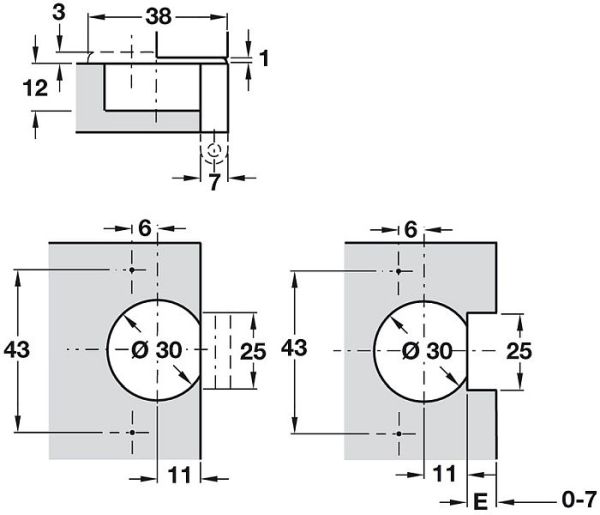

Diam: 30 mm cup
Screw fixing cup
Slide on arm
Semi concealed, specially designed for fold back doors
Nickel-plated zinc alloy.

Order fixing plates seperately.
